65*50cm X Ray Baggage Scanner Machine Dual View X-ray Baggage Inspection System

Name: 6550cm X Ray Baggage Scanner Machine Dual View Xray Baggage Inspection System
Brand: UNIQSCAN
Price: 1 USD

Brand Name : UNIQSCAN

Model Number : SF6550D

Certification : CE , ISO

Place of Origin : CHINA

MOQ : 1 UNIT

Price : USD

Payment Terms : T/T, Western Union

Supply Ability : 500 UNITS FOR ONE MONTH

Delivery Time : IN ONE WEEK

Packaging Details : WOODEN BOX

Product Name : Dual View Baggage scanner machine

Tunnel Size : 650(W) X500 (H) mm

Power consumption : 1.0KW (Max)

Conveyor Speed : 0.22m/s

Wire Resolution : 38AWG

Anode Voltage : 140~160KV

Spatial Resolution : 1.0mm Horizontal and Vertical

Steel Penetration : 40mm

Contact Now

65*50cm X-ray Baggage Scanner Machine Dual View X-ray Baggage Inspection System

Brief :
1. With equipment to save electricity
2. X-ray generator is from Beijing KV tech
3. Interroll from Germany
4. Receiver from DEETEE Finaland
5. Protective cover on lead curtain to avoid lead pollution;
6. Local network supported
7. One-key shutdown control
8. Self-diagnosis function
9. TIP and training software , free programmable keys , real time diagnostic

General Specification:

Tunnel Size :	650 (W) ×500 (H) mm
Power Requirement:	220V AC (±10%) 50±3Hz
Power consumption:	1.0KW (Max)
Noise level:	<58dB
Conveyor Speed:	0.22m/s
Conveyor Max Load:	200 kg
Wire Resolution:	38AWG
Spatial Resolution:	1.0mm Horizontal and Vertical
Steel Penetration:	40mm
Single inspection dosage:	< 1.2μGy
Leakage radiation:	<0.1µGy/h
Film Safety:	Guarantee ISO1600 Film

X-Ray Generator Specifications:

Tube Current:	0.7~1.2mA
Anode Voltage:	140~160KV
Cooling:	Sealed oil bath with forced air
Duty Cycle:	Rated for 100%Duty Cycle
Beam Direction:	Upward and Sideward
Beam Angle:	80°
Detector:	L-shaped Array * 2

Environment Specifications:

Operating temperature/humidity:	0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
Storage temperature/humidity:	-20ºC ~ 60ºC/20% ~ 95% (Non-condensing)

Computer Specification:

Processor:	I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory:	4GDDR3 Loptop Memory
Hard Disk :	1T

Image Display:

Display:	19'' High Resolution LCD Monitor *2
Display Resolution:	1280*1024;24 bit/pixel Color
Contrast Sensitivity:	24 Visible Levels, 4096 Gray Level
Image storage:	100,000 pictures in real time (can be customized)
Zoom:	64 Times Enlarge, Whole screen continuous observation

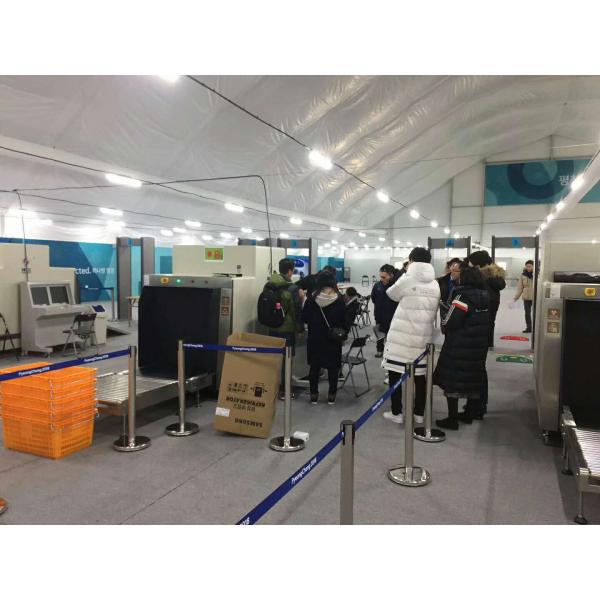

UNIQSCAN Baggage Scanner Project For PyeongChang 2018 Winter Olympics:

65*50cm X Ray Baggage Scanner Machine Dual View X-ray Baggage Inspection System
