Public Check Security Baggage Scanner / X Ray Scanning Machine High Sensitivity

Product Categories
SHENZHEN UNISEC TECHNOLOGY CO.,LTD
Contact Now

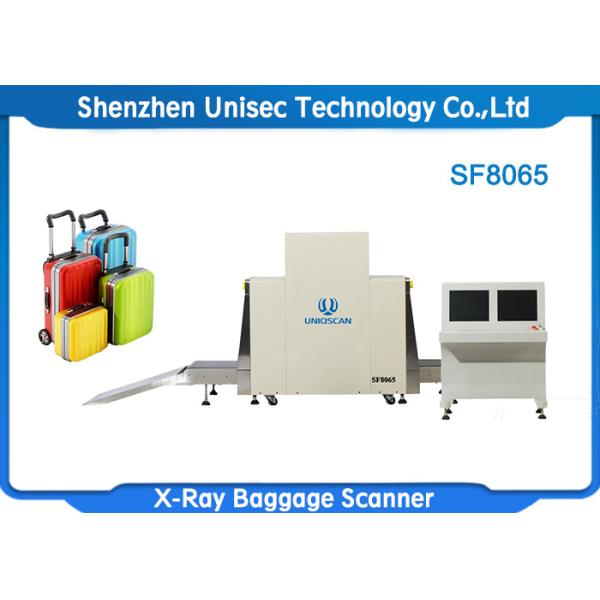

Public Check Security Baggage Scanner / X Ray Scanning Machine High Sensitivity

Brand Name : Uniqscan

Model Number : SF8065

Certification : CE;ISO

Place of Origin : Shenzhen

MOQ : 1 PCS

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500pcs /month

Delivery Time : 5 work days

Packaging Details : wooden case

tunnel size : 800（w）x650(h)mm

conveyor speed : 0.22m/s

wire resolution : 40AWG

steel penetration : 38mm

warranty : 2 year

network : option

model : SF8065

application : public security

certification : CE;ISO

Contact Now

Public Check Security Baggage Scanner / X Ray Scanning Machine High Sensitivity

Popular and economic high sensitivity x-ray baggage scanner for all public security check Public Check Security Baggage Scanner / X Ray Scanning Machine High Sensitivity

CCTV Multiple Size Security inspection airport x-ray scanner machines

Packaging & Delivery

P Packaging Detail:strong cartoon box or ploywooden case

D elivery Detail:working day after confirm the order

General specification

Orientation:From the top down

Single inspection dosage:< 1.15μGy

Leakage radiation dosage:≤ 0.14µGy/h

Tunnel Size:800(W)×650(H)mm

Conveyor Speed:0.22m/s

Conveyor Max Load: 200 kg

Spatial resolution:1.0mm Horizontal ；1.0mm Vertical

F


Parameter
General specification X-ray Generator
Tunnel Size : 800(W)×650(H)mm Orientation: From the top down;
Conveyor Speed: 0.22m/s Tube Current: 0.4~0.7MA(adjustable)
Conveyor Max Load: 200 kg Anode voltage: 100~160KV(adjustable)
Single inspection dosage:< 1.15μGy X-ray divergence angle: 80 °
Leakage radiation dosage:≤ 0.14µGy/h Generator cooling/working periods:
Wire resolution: 40AWG sealed oil bath with forced air/100%
Spatial resolution :1.0mm Horizontal ；1.0mm Vertical X-RAY Sensor:
Steel Penetration: 38mm steel plate L-shaped array detector, 24bit
Film safety: for ISO1600

F

Feature

Dual Energy ,L-shaped array detector
apan HAMMATSU detector crystal , Detecting board from Deetee Finland.
IPC from Taiwan , Interroll Roller from German
High-resolution PHILIP 19 inch color LCD display
Four colors to distinguish organic , inorganic and dangerous material
Multiple functions: High/Low penetration display, Magnifier, Brightening/dimming,
Image enlarge, recurrence, restoration, storage, network



Image Performance System
X-ray sensor---L type photodiode array detector (energy), 24 bi depth；
Display---High-resolution liquid crystal display, 24-bit color；
Color management architectures---Different color, different matter；
Inverse,white/black/colorized---For compare these images to find the suspected dangerous goods
To eliminate organic,Inorganic out---In view of the most important image;
Edge enhancement---The edge of image is more clear；
High penetration---Make the image more through, for look every goods in one image ；
Zoom in/zoom out---Make the image bigger ,make the image smaller；
1 times size of image---Make image back to 1 times size of image;
Brighter/darker---Make image more bright /make image darker；
Replay---Playback all images on the screen at current,be able to do the next steps；
Application and Certifications
used for scenic spots, gymnasium, expo centre, left- baggage counter, supermarket, hotel ,court, prison..etc
Machine parts safeguard measures
High performance network function
Chinese ministry of public security testing
EU CE Certification
ISO9001 Certification
ISO14001 Environmental Management

Fatory Pictures:





Public Check Security Baggage Scanner / X Ray Scanning Machine High Sensitivity
